COUNTERSUNK FLAT HEAD MACHINE SCREW CROSS RECESS POZIDRIVE DIN 965 4.8 CLASS - ZINC PLATED - T55-30101B DIN 965 - ACIER CLASSE 4.8 ZN DIN 965 (Model : T55-30101B)

Home » Tools » Maintenance, fixing and gluing » Fasteners and fixing systems » COUNTERSUNK FLAT HEAD MACHINE SCREW CROSS RECESS POZIDRIVE DIN 965 4.8 CLASS - ZINC PLATED - T55-30101B DIN 965 - ACIER CLASSE 4.8 ZN DIN 965 (Model : T55-30101B)

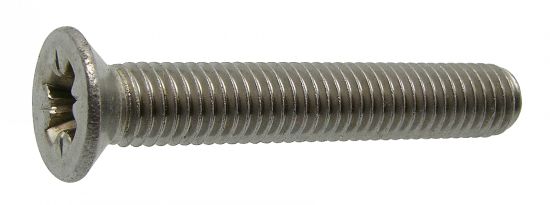

Photos

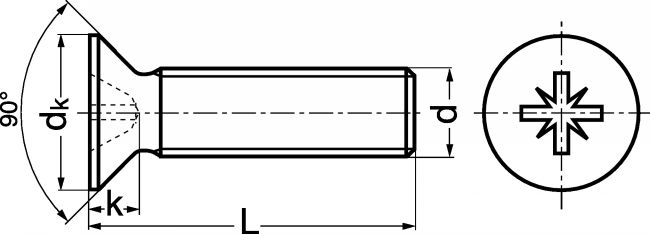

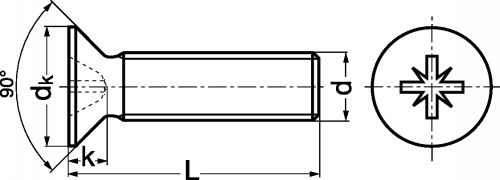

Dessins techniques

EXAMPLE OF ORDER :

Référence FI T55-30101B4X10

Information

Vis à métaux tête fraisée cruciforme Z "POZI" DIN 965 - Acier classe 4.8 Zn - modèle - T55-30101B

Files

• Maintenance, fixation et collage

Schéma 0

Quantity



CAD

Avail. --------- All NC D

Price * ----------- All NC

Ref ---- All T55-30101B-4X10 T55-30101B-4X16 T55-30101B-4X20 T55-30101B-4X25 T55-30101B-4X30 T55-30101B-5X10 T55-30101B-5X16 T55-30101B-5X20 T55-30101B-5X25 T55-30101B-5X30 T55-30101B-5X40 T55-30101B-6X12 T55-30101B-6X16 T55-30101B-6X20 T55-30101B-6X30 T55-30101B-6X40

+

dxL (mm) ------------ All 4x10 4x16 4x20 4x25 4x30 5x10 5x16 5x20 5x25 5x30 5x40 6x12 6x16 6x20 6x30 6x40

d - All M4 M5 M6

dk (mm) ----------- All 7,5 9,3 11

k (mm) --------- All 2,2 2,5 3

Empreinte Z N° ------------------------ All 2 3



NC

NC

T55-30101B-4X10

4x10

M4

7,5

2,2

2



NC

NC

T55-30101B-4X16

4x16

M4

7,5

2,2

2



D

NC

T55-30101B-4X20

4x20

M4

7,5

2,2

2



D

NC

T55-30101B-4X25

4x25

M4

7,5

2,2

2



NC

NC

T55-30101B-4X30

4x30

M4

7,5

2,2

2



NC

NC

T55-30101B-5X10

5x10

M5

9,3

2,5

2



D

NC

T55-30101B-5X16

5x16

M5

9,3

2,5

2



D

NC

T55-30101B-5X20

5x20

M5

9,3

2,5

2



NC

NC

T55-30101B-5X25

5x25

M5

9,3

2,5

2



NC

NC

T55-30101B-5X30

5x30

M5

9,3

2,5

2



NC

NC

T55-30101B-5X40

5x40

M5

9,3

2,5

2



NC

NC

T55-30101B-6X12

6x12

M6

11

3

3



NC

NC

T55-30101B-6X16

6x16

M6

11

3

3



NC

NC

T55-30101B-6X20

6x20

M6

11

3

3



NC

NC

T55-30101B-6X30

6x30

M6

11

3

3



D

NC

T55-30101B-6X40

6x40

M6

11

3

3
