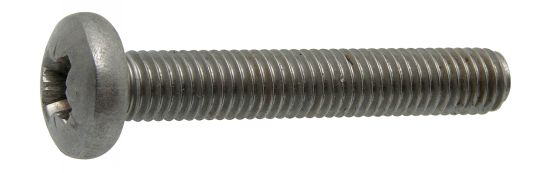

Photos

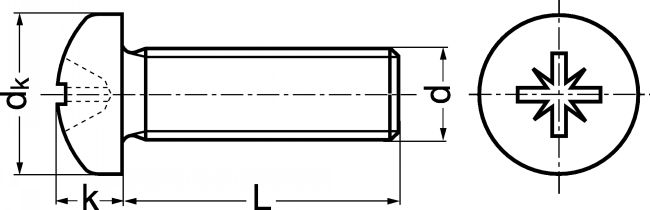

Dessins techniques

EXAMPLE OF ORDER :

Référence FI T55-30701B4X10

Information

Vis à métaux tête cylindrique bombée large crucifrome Z "POZI" DIN 7985 - Acier classe 4.8 Zn - modèle - T55-30701B

Files

• Maintenance, fixation et collage

Schéma 0

Quantity



CAD

Avail. --------- All NC D

Price * ----------- All NC

Ref ---- All T55-30701B-4X10 T55-30701B-4X16 T55-30701B-4X20 T55-30701B-4X30 T55-30701B-5X10 T55-30701B-5X16 T55-30701B-5X20 T55-30701B-5X30 T55-30701B-5X40 T55-30701B-6X10 T55-30701B-6X16 T55-30701B-6X20 T55-30701B-6X30 T55-30701B-6X40 T55-30701B-6X50

+

dxL (mm) ------------ All 4x10 4x16 4x20 4x30 5x10 5x16 5x20 5x30 5x40 6x10 6x16 6x20 6x30 6x40 6x50

d - All M4 M5 M6

dk (mm) ----------- All 8 10 12

k (mm) --------- All 3,1 3,8 4,6

Empreinte Z N° ------------------------ All 2 3



NC

NC

T55-30701B-4X10

4x10

M4

8

3,1

2



NC

NC

T55-30701B-4X16

4x16

M4

8

3,1

2



NC

NC

T55-30701B-4X20

4x20

M4

8

3,1

2



NC

NC

T55-30701B-4X30

4x30

M4

8

3,1

2



D

NC

T55-30701B-5X10

5x10

M5

10

3,8

2



NC

NC

T55-30701B-5X16

5x16

M5

10

3,8

2



NC

NC

T55-30701B-5X20

5x20

M5

10

3,8

2



NC

NC

T55-30701B-5X30

5x30

M5

10

3,8

2



NC

NC

T55-30701B-5X40

5x40

M5

10

3,8

2



NC

NC

T55-30701B-6X10

6x10

M6

12

4,6

3



NC

NC

T55-30701B-6X16

6x16

M6

12

4,6

3



NC

NC

T55-30701B-6X20

6x20

M6

12

4,6

3



NC

NC

T55-30701B-6X30

6x30

M6

12

4,6

3



D

NC

T55-30701B-6X40

6x40

M6

12

4,6

3



D

NC

T55-30701B-6X50

6x50

M6

12

4,6

3
