HELICAL GUIDEWAY VEE RACK (Model : B2-FZ)

B2-FZ HELICAL GUIDEWAY VEE RACK

Photos

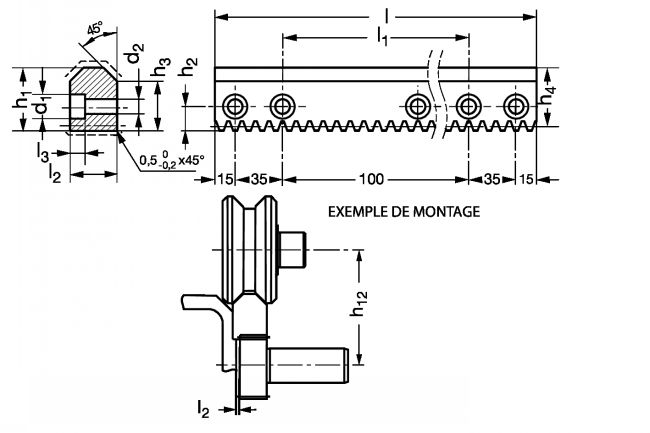

Dessins techniques

Information

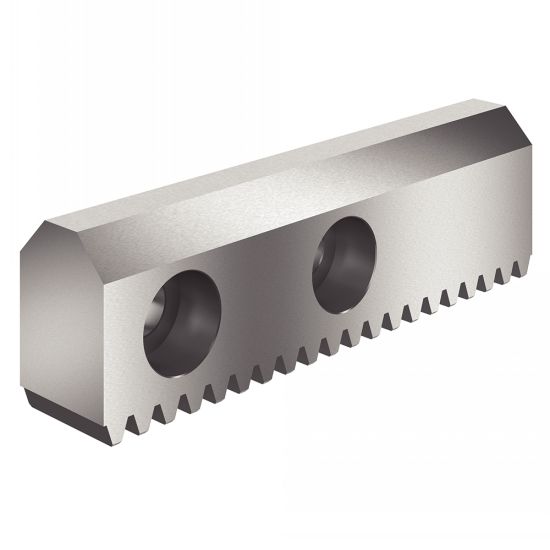

Rail de guidage en V crémaillère - modèle B2-FZ

Matières
- Acier trempé rectifié 58CrMoV4.

Exécutions
- Rail crémaillère avec surface de guidage trempée, rectifiée et denture taillée de précision, qualité 7h25.

Sur demande
- Rails inoxydable X42Cr13.
- Rails crémaillère à denture trempée et rectifiée, qualité 6h23.

Quantity

CAD
+
CAD
NC
NC
B2-FZ 15-1200
905115
15
1200
1100
24,5
11
7
20
14,5
6,8
11,5
22,91
1,5915
5
61,3
1
CAD
NC
NC
B2-FZ 15-600
905116
15
600
500
24,5
11
7
20
14,5
6,8
11,5
22,91
1,5915
5
61,3
1
CAD
D
NC
B2-FZ 20-1200
905120
20
1200
1100
29,5
15
9
23,5
19,5
9
14
27,91
1,5915
5
69,6
2,5
CAD
NC
NC
B2-FZ 20-600
905121
20
600
500
29,5
15
9
23,5
19,5
9
14
27,91
1,5915
5
69,6
2,5
CAD
D
NC
B2-FZ 25-1200
905125
25
1200
1100
33
15
9
25,2
24,7
9
14,5
30,61
2,3873
7,5
85,5
2,7
CAD
NC
NC
B2-FZ 25-600
905127
25
600
500
33
15
9
25,2
24,7
9
14,5
30,61
2,3873
7,5
85,5
2,7
CAD
NC
NC
B2-FZ 35-1200
905135
35
1200
1100
46,6
18
11
36,7
34,6
11
18
43,42
3,1831
10
119,1
2,1
CAD
NC
NC
B2-FZ 35-600
905137
35
600
500
46,6
18
11
36,7
34,6
11
18
43,42
3,1831
10
119,1
2,1

10 Nm = 1 kg.m
