O-rings - E2-NBR-90SH

E2-NBR-90SH O-RINGS NBR 90SH

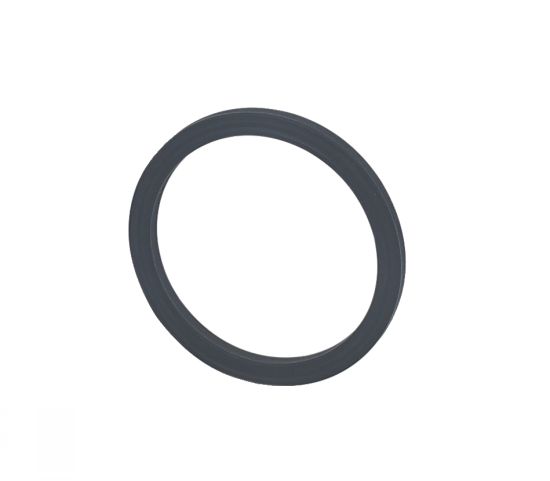

Photos

Nouveau

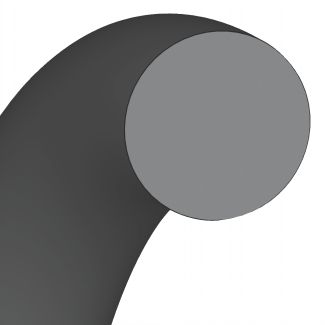

Joint torique - EPDM
Joint torique

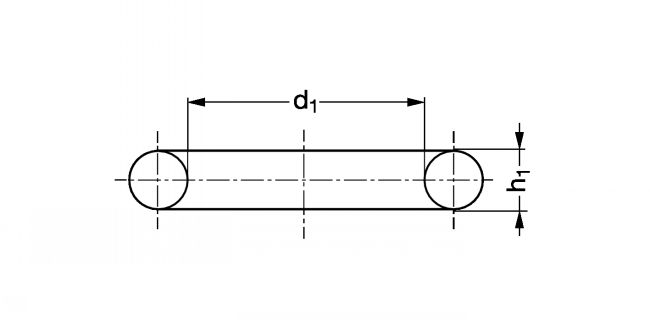

Dessins techniques

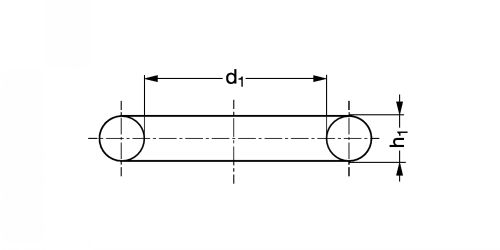

Joint torique - Plan
FREUDENBERG
EXAMPLE OF ORDER : Référence
2,50X1/90SH

Information

Joint torique Nitrile NBR 90SH - modèle E2-NBR-90SH

Matières
- 90 NBR NB902803.
- Noir.
- 90 Shore A.

Caractéristiques
- Plage de températures : de -30°C à +100°C.
- Bonne résistance chimique à diverses huiles et graisses minérales.
- Fluides hydrauliques ignifuges HFA et HFB, HFC jusqu'à environ +50°C.
- Eau jusqu'à maxi +60°C.
- Faible résistance à l'ozone, aux intempéries et au vieillissement.
- PFOA / PFOS free.

Files

Schéma 0

Quantity

CAD
+

NC
NC
4X1,50/90SH
4
1,5

NC
NC
7X1,50/90SH
7
1,5

D
NC
8X1,50/90SH
8
1,5

NC
NC
9X1,50/90SH
9
1,5

NC
NC
17X1,50/90SH
17
1,5

NC
NC
28X1,50/90SH
28
1,5

NC
NC
3,10X1,60/90SH
3,1
1,6

NC
NC
7,10X1,60/90SH
7,1
1,6

NC
NC
8,10X1,60/90SH
8,1
1,6

NC
NC
10,10X1,60/90SH
10,1
1,6

NC
NC
14,10X1,60/90SH
14,1
1,6

NC
NC
2,57X1,78/90SH
2,57
1,78

NC
NC
2,90X1,78/90SH
2,9
1,78

NC
NC
3,68X1,78/90SH
3,68
1,78

NC
NC
4,47X1,78/90SH
4,47
1,78

D
NC
5,28X1,78/90SH
5,28
1,78

NC
NC
6,07X1,78/90SH
6,07
1,78

D
NC
7,65X1,78/90SH
7,65
1,78

D
NC
8,73X1,78/90SH
8,73
1,78

D
NC
9,25X1,78/90SH
9,25
1,78

D
NC
10,82X1,78/90SH
10,82
1,78

D
NC
12,42X1,78/90SH
12,42
1,78

D
NC
14X1,78/90SH
14
1,78

D
NC
15,60X1,78/90SH
15,6
1,78

D
NC
17,17X1,78/90SH
17,17
1,78

D
NC
18,77X1,78/90SH
18,77
1,78

NC
NC
20,35X1,78/90SH
20,35
1,78

NC
NC
21,95X1,78/90SH
21,95
1,78

NC
NC
23,52X1,78/90SH
23,52
1,78

NC
NC
25,12X1,78/90SH
25,12
1,78

NC
NC
26,70X1,78/90SH
26,7
1,78

NC
NC
28,30X1,78/90SH
28,3
1,78

NC
NC
29,87X1,78/90SH
29,87
1,78

D
NC
31,47X1,78/90SH
31,47
1,78

NC
NC
41X1,78/90SH
41
1,78

NC
NC
8X1,90/90SH
8
1,9

NC
NC
3X2/90SH
3
2

NC
NC
4X2/90SH
4
2

NC
NC
6X2/90SH
6
2

D
NC
8X2/90SH
8
2

D
NC
9X2/90SH
9
2

NC
NC
10X2/90SH
10
2

D
NC
12X2/90SH
12
2

NC
NC
13X2/90SH
13
2

NC
NC
14X2/90SH
14
2

NC
NC
16X2/90SH
16
2

NC
NC
18X2/90SH
18
2

D
NC
20X2/90SH
20
2

NC
NC
24X2/90SH
24
2

NC
NC
28X2/90SH
28
2

NC
NC
32X2/90SH
32
2

NC
NC
35X2/90SH
35
2

NC
NC
58X2/90SH
58
2

NC
NC
11,30X2,20/90SH
11,3
2,2

NC
NC
5,30X2,40/90SH
5,3
2,4

NC
NC
6,30X2,40/90SH
6,3
2,4

NC
NC
10,30X2,40/90SH
10,3
2,4

NC
NC
11,30X2,40/90SH
11,3
2,4

D
NC
13,30X2,40/90SH
13,3
2,4

NC
NC
15,30X2,40/90SH
15,3
2,4

NC
NC
19,30X2,40/90SH
19,3
2,4

NC
NC
27,30X2,40/90SH
27,3
2,4

NC
NC
16X2,50/90SH
16
2,5

NC
NC
17X2,50/90SH
17
2,5

NC
NC
19X2,50/90SH
19
2,5

NC
NC
33X2,50/90SH
33
2,5

NC
NC
44X2,50/90SH
44
2,5

D
NC
9,19X2,62/90SH
9,19
2,62

D
NC
10,77X2,62/90SH
10,77
2,62

D
NC
12,37X2,62/90SH
12,37
2,62

NC
NC
15,08X2,62/90SH
15,08
2,62

NC
NC
15,54X2,62/90SH
15,54
2,62

NC
NC
17,12X2,62/90SH
17,12
2,62

D
NC
17,86X2,62/90SH
17,86
2,62

D
NC
18,72X2,62/90SH
18,72
2,62

D
NC
21,89X2,62/90SH
21,89
2,62

NC
NC
22,22X2,62/90SH
22,22
2,62

NC
NC
23,47X2,62/90SH
23,47
2,62

D
NC
25,07X2,62/90SH
25,07
2,62

NC
NC
26,65X2,62/90SH
26,65
2,62

NC
NC
31,42X2,62/90SH
31,42
2,62

NC
NC
32,99X2,62/90SH
32,99
2,62

NC
NC
34,59X2,62/90SH
34,59
2,62

D
NC
36,17X2,62/90SH
36,17
2,62

NC
NC
37,77X2,62/90SH
37,77
2,62

NC
NC
45,69X2,62/90SH
45,69
2,62

NC
NC
50,47X2,62/90SH
50,47
2,62

NC
NC
52,07X2,62/90SH
52,07
2,62

NC
NC
53,65X2,62/90SH
53,65
2,62

NC
NC
58,42X2,62/90SH
58,42
2,62

NC
NC
63,17X2,62/90SH
63,17
2,62

NC
NC
64,77X2,62/90SH
64,77
2,62

NC
NC
71,12X2,62/90SH
71,12
2,62

NC
NC
75,87X2,62/90SH
75,87
2,62

D
NC
12,10X2,70/90SH
12,1
2,7

NC
NC
29,74X2,95/90SH
29,74
2,95

NC
NC
14X3/90SH
14
3

NC
NC
20X3/90SH
20
3

NC
NC
24X3/90SH
24
3

D
NC
25X3/90SH
25
3

NC
NC
30X3/90SH
30
3

NC
NC
38X3/90SH
38
3

D
NC
40X3/90SH
40
3

D
NC
43X3/90SH
43
3

NC
NC
50X3/90SH
50
3

D
NC
54X3/90SH
54
3

D
NC
55X3/90SH
55
3

D
NC
58X3/90SH
58
3

NC
NC
64,50X3/90SH
64,5
3

D
NC
70X3/90SH
70
3

NC
NC
85X3/90SH
85
3

NC
NC
88X3/90SH
88
3

NC
NC
99,50X3/90SH
99,5
3

D
NC
100X3/90SH
100
3

NC
NC
109,50X3/90SH
109,5
3

D
NC
18,65X3,53/90SH
18,65
3,53

NC
NC
21,82X3,53/90SH
21,82
3,53

NC
NC
23,39X3,53/90SH
23,39
3,53

NC
NC
24,99X3,53/90SH
24,99
3,53

D
NC
28,17X3,53/90SH
28,17
3,53

D
NC
29,75X3,53/90SH
29,75
3,53

D
NC
31,34X3,53/90SH
31,34
3,53

D
NC
32,92X3,53/90SH
32,92
3,53

NC
NC
34,52X3,53/90SH
34,52
3,53

NC
NC
36,09X3,53/90SH
36,09
3,53

NC
NC
37,69X3,53/90SH
37,69
3,53

NC
NC
39,69X3,53/90SH
39,69
3,53

NC
NC
40,87X3,53/90SH
40,87
3,53

NC
NC
42,86X3,53/90SH
42,86
3,53

NC
NC
44,05X3,53/90SH
44,05
3,53

NC
NC
47,22X3,53/90SH
47,22
3,53

NC
NC
53,57X3,53/90SH
53,57
3,53

D
NC
59,92X3,53/90SH
59,92
3,53

D
NC
63,09X3,53/90SH
63,09
3,53

NC
NC
66,27X3,53/90SH
66,27
3,53

NC
NC
72,62X3,53/90SH
72,62
3,53

NC
NC
75,79X3,53/90SH
75,79
3,53

NC
NC
78,97X3,53/90SH
78,97
3,53

NC
NC
82,14X3,53/90SH
82,14
3,53

NC
NC
85,32X3,53/90SH
85,32
3,53

NC
NC
88,49X3,53/90SH
88,49
3,53

NC
NC
91,67X3,53/90SH
91,67
3,53

NC
NC
94,84X3,53/90SH
94,84
3,53

NC
NC
98,02X3,53/90SH
98,02
3,53

NC
NC
101,19X3,53/90SH
101,19
3,53

NC
NC
104,37X3,53/90SH
104,37
3,53

NC
NC
107,54X3,53/90SH
107,54
3,53

D
NC
110,72X3,53/90SH
110,72
3,53

NC
NC
113,89X3,53/90SH
113,89
3,53

NC
NC
117,07X3,53/90SH
117,07
3,53

NC
NC
120,24X3,53/90SH
120,24
3,53

NC
NC
123,42X3,53/90SH
123,42
3,53

NC
NC
129,77X3,53/90SH
129,77
3,53

NC
NC
132,94X3,53/90SH
132,94
3,53

NC
NC
139,29X3,53/90SH
139,29
3,53

D
NC
29,30X3,60/90SH
29,3
3,6

NC
NC
60X4/90SH
60
4

D
NC
124X4/90SH
124
4

NC
NC
60X5/90SH
60
5

NC
NC
37,47X5,33/90SH
37,47
5,33

NC
NC
43,82X5,33/90SH
43,82
5,33

NC
NC
46,99X5,33/90SH
46,99
5,33

NC
NC
50,16X5,33/90SH
50,16
5,33

D
NC
53,34X5,33/90SH
53,34
5,33

NC
NC
56,52X5,33/90SH
56,52
5,33

D
NC
59,69X5,33/90SH
59,69
5,33

NC
NC
62,87X5,33/90SH
62,87
5,33

NC
NC
66,04X5,33/90SH
66,04
5,33

D
NC
69,22X5,33/90SH
69,22
5,33

NC
NC
72,39X5,33/90SH
72,39
5,33

D
NC
75,57X5,33/90SH
75,57
5,33

D
NC
78,74X5,33/90SH
78,74
5,33

NC
NC
85,09X5,33/90SH
85,09
5,33

NC
NC
88,27X5,33/90SH
88,27
5,33

NC
NC
91,44X5,33/90SH
91,44
5,33

NC
NC
94,62X5,33/90SH
94,62
5,33

NC
NC
100,97X5,33/90SH
100,97
5,33

NC
NC
107,32X5,33/90SH
107,32
5,33

NC
NC
113,67X5,33/90SH
113,67
5,33

NC
NC
139,07X5,33/90SH
139,07
5,33

D
NC
35,20X5,70/90SH
35,2
5,7

NC
NC
74,20X5,70/90SH
74,2
5,7

NC
NC
114,20X5,70/90SH
114,2
5,7

NC
NC
149,20X5,70/90SH
149,2
5,7

NC
NC
169,20X5,70/90SH
169,2
5,7

D
NC
120,02X6,99/90SH
120,02
6,99

NC
NC
126,37X6,99/90SH
126,37
6,99

NC
NC
129,54X6,99/90SH
129,54
6,99

NC
NC
132,72X6,99/90SH
132,72
6,99

NC
NC
142,24X6,99/90SH
142,24
6,99

NC
NC
145,42X6,99/90SH
145,42
6,99

NC
NC
148,59X6,99/90SH
148,59
6,99

NC
NC
158,12X6,99/90SH
158,12
6,99

NC
NC
164,47X6,99/90SH
164,47
6,99

NC
NC
170,82X6,99/90SH
170,82
6,99

D
NC
177,17X6,99/90SH
177,17
6,99

NC
NC
183,52X6,99/90SH
183,52
6,99

NC
NC
189,87X6,99/90SH
189,87
6,99

NC
NC
196,22X6,99/90SH
196,22
6,99

D
NC
202,57X6,99/90SH
202,57
6,99

NC
NC
215,27X6,99/90SH
215,27
6,99

NC
NC
227,97X6,99/90SH
227,97
6,99

NC
NC
240,67X6,99/90SH
240,67
6,99

NC
NC
278,77X6,99/90SH
278,77
6,99

NC
NC
304,17X6,99/90SH
304,17
6,99

NC
NC
342,27X6,99/90SH
342,27
6,99

NC
NC
354,97X6,99/90SH
354,97
6,99

NC
NC
367,67X6,99/90SH
367,67
6,99

NC
NC
393,07X6,99/90SH
393,07
6,99
