HEXAGON NUT DIN 934 - STAINLESS STEEL A2 - T55-62601B DIN 934 - INOX A2 DIN 934 (Model : T55-62601B)

Home » Tools » Maintenance, fixing and gluing » Fasteners and fixing systems » HEXAGON NUT DIN 934 - STAINLESS STEEL A2 - T55-62601B DIN 934 - INOX A2 DIN 934 (Model : T55-62601B)

Photos

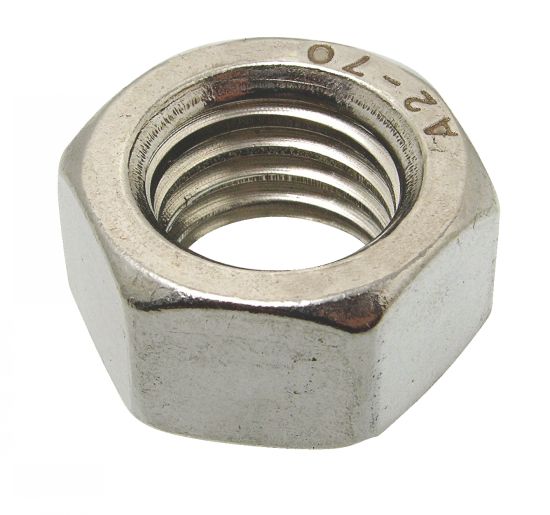

Ecrou Hexagonal Hu

PrevNext

Dessins techniques

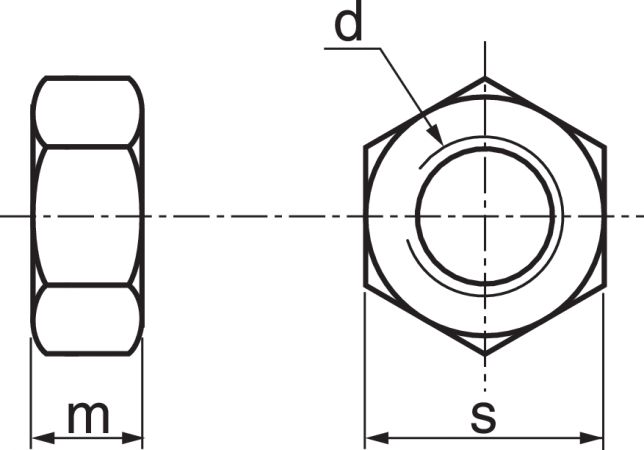

Ecrou Hexagonal Hu - Plan

PrevNext

EXAMPLE OF ORDER :

Référence FI T55-62601B4

Information

Ecrou Hexagonal Hu DIN 934 - Inox A2 - modèle - T55-62601B

Files

• Maintenance, fixation et collage

Schéma 0

Quantity



CAD

Avail. --------- All D NC

Price * ----------- All NC

Ref ---- All T55-62601B-4 T55-62601B-5 T55-62601B-6 T55-62601B-8 T55-62601B-10 T55-62601B-12 T55-62601B-14 T55-62601B-16 T55-62601B-18 T55-62601B-20

+

m (mm) --------- All 3,2 4 5 6,5 8 10 11 13 15 16

s (mm) --------- All 7 8 10 13 17 19 22 24 27 30

D - All M 4 M 5 M 6 M 8 M 10 M 12 M 14 M 16 M 18 M 20



D

NC

T55-62601B-4

3,2

7

M 4



D

NC

T55-62601B-5

4

8

M 5



D

NC

T55-62601B-6

5

10

M 6



D

NC

T55-62601B-8

6,5

13

M 8



D

NC

T55-62601B-10

8

17

M 10



D

NC

T55-62601B-12

10

19

M 12



D

NC

T55-62601B-14

11

22

M 14



D

NC

T55-62601B-16

13

24

M 16



NC

NC

T55-62601B-18

15

27

M 18



D

NC

T55-62601B-20

16

30

M 20
