PREVALLING TORQUE TYPE HEXAGON NUT PLASTIC INSERT DIN 985 6 CLASS - ZINC PLATED - T55-43801B DIN 985 - ACIER CLASSE 6 ZN DIN 985 (Model : T55-43801B)

Home » Tools » Maintenance, fixing and gluing » Fasteners and fixing systems » PREVALLING TORQUE TYPE HEXAGON NUT PLASTIC INSERT DIN 985 6 CLASS - ZINC PLATED - T55-43801B DIN 985 - ACIER CLASSE 6 ZN DIN 985 (Model : T55-43801B)

Photos

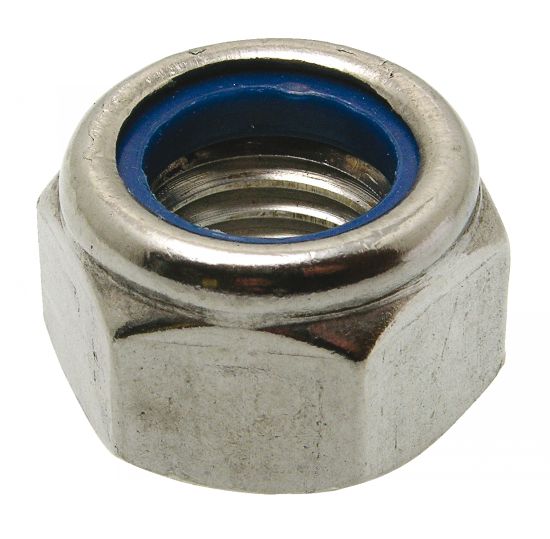

Ecrou hexa autofreiné à anneau non métallique

PrevNext

Dessins techniques

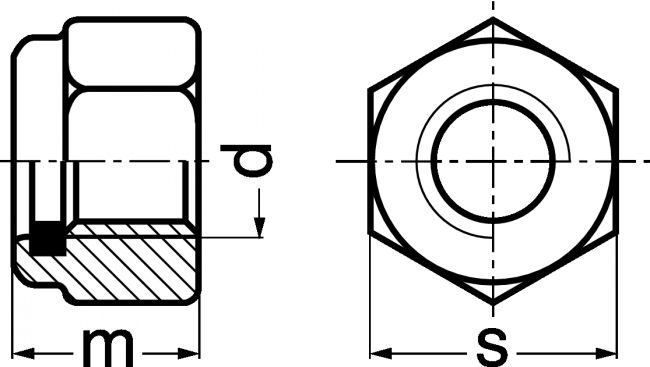

Ecrou hexa autofreiné - Plan

PrevNext

EXAMPLE OF ORDER :

Référence FI T55-43801B4

Information

Ecrou hexagonal autofreiné à anneau non métallique DIN 985 - Acier classe 6 Zn - modèle - T55-43801B

Files

• Maintenance, fixation et collage

Schéma 0

Quantity



CAD

Avail. --------- All D NC

Price * ----------- All NC

Ref ---- All T55-43801B-4 T55-43801B-5 T55-43801B-6 T55-43801B-8 T55-43801B-10 T55-43801B-12 T55-43801B-14 T55-43801B-16 T55-43801B-18 T55-43801B-20 T55-43801B-22 T55-43801B-24

+

d - All M4 M5 M6 M8 M10 M12 M14 M16 M18 M20 M22 M24

m (mm) --------- All 5,0 6,0 8,0 10,0 12,0 14,0 16,0 18,5 20,0 22,0 24,0

s (mm) --------- All 7,0 8,0 10,0 13,0 17,0 19,0 22,0 24,0 27,0 30,0 32,0 36,0
