Manchon expansible ETP-EXPRESS - A5-50

A5-50 MANCHON EXPANSIBLE ETP-EXPRESS EN ACIER

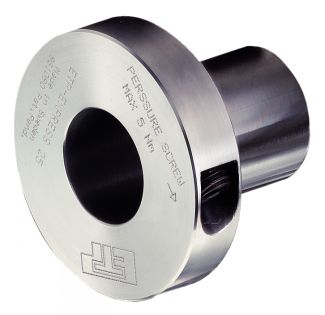

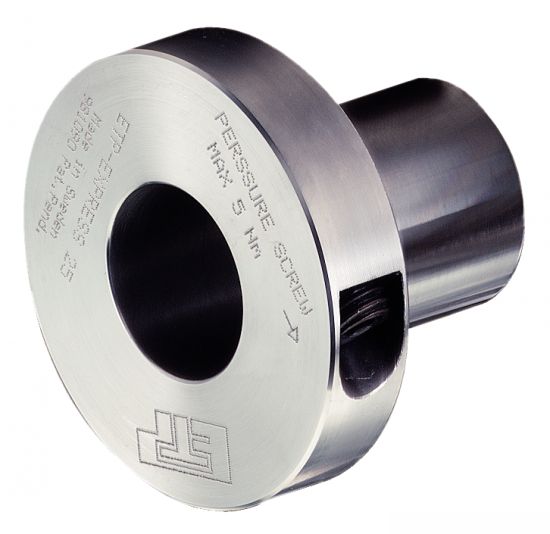

Photos

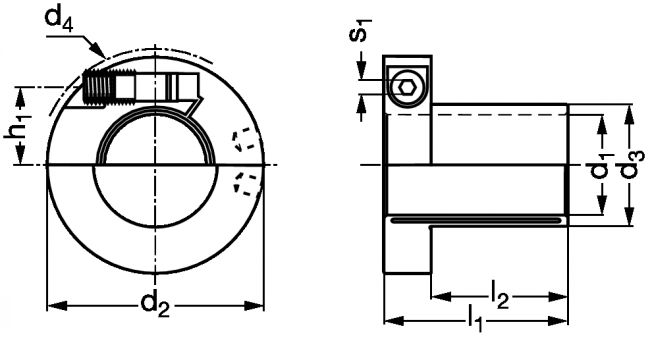

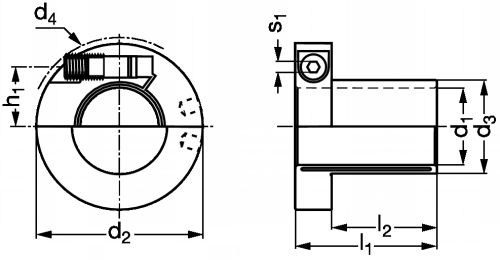

Dessins techniques

Informations

Manchon expansible ETP-EXPRESS en acier - modèle A5-50

Matière
- Acier.
Caractéristiques
- Arbre h7 pour d = 15mm.
- Arbre k6-h7 pour d =19,22,24,28,32,38,42,48,55mm.
- Arbre h8 pour tous les autres diamètres.
- Moyeu H7.
- d4 valable avant montage.
- Efforts transmissibles maxi (vis serrées au couple indiqué) :
. Couple maximum transmissible à 20°C avec effort axial nul.
. Effort axial maximum transmissibleà 20°C avec couple nul.
Utilisation
- Température : -30°C à +85°C.

Quantité

CAD
+

NC
NC
A5-50-15
15
46
18
48,9
39
25
15,1
5
46
5,1
0,5
M10
5
0,04
0,16

D
NC
A5-50-19
19
50,5
23
53
42
28
17,4
5
85
7,3
1
M10
5
0,06
0,2

D
NC
A5-50-20
20
51,5
24
54,1
44
30
18
5
110
9,1
1
M10
5
0,07
0,21

NC
NC
A5-50-22
22
55,5
27
60,5
46
32
19,3
5
130
9,6
1,2
M10
5
0,1
0,25

D
NC
A5-50-24
24
57,5
29
62,3
47
33
20,3
5
190
13
1,4
M10
5
0,11
0,27

NC
NC
A5-50-25
25
58
30
62,9
49
35
20,8
5
230
15
1,5
M10
5
0,12
0,27

NC
NC
A5-50-28
28
63
34
69,6
52
38
22,6
5
280
16
1,8
M10
5
0,17
0,34

D
NC
A5-50-30
30
64,5
36
71
54
40
23,6
5
380
21
2
M10
5
0,19
0,35

NC
NC
A5-50-32
32
68,5
39
77,7
56
42
24,8
5
440
22
2,2
M10
5
0,25
0,42

NC
NC
A5-50-35
35
73
42
85,1
59
45
26,4
5
640
30
2,5
M10
5
0,32
0,48

NC
NC
A5-50-38
38
84,5
46
89,5
72
52
31
8
890
38
2,8
M16
21
0,76
0,84

NC
NC
A5-50-40
40
86,5
48
91,2
75
55
32
8
1100
45
3
M16
21
0,84
0,88

NC
NC
A5-50-42
42
89
51
93,5
76
56
33,2
8
1100
43
3,2
M16
21
0,97
0,96

NC
NC
A5-50-45
45
93
54
100,3
78
58
34,8
8
1400
51
3,5
M16
21
1,17
1,05

NC
NC
A5-50-48
48
97
59
103,8
79
59
36,8
8
1700
57
4
M16
21
1,46
1,21

NC
NC
A5-50-50
50
98,5
60
105,1
80
60
37,5
8
1900
63
4,5
M16
21
1,52
1,2

NC
NC
A5-50-55
55
106
67
115,9
85
65
40,5
8
2400
71
5
M16
21
2,18
1,5

NC
NC
A5-50-60
60
115,5
73
132,7
90
70
43,3
8
3300
90
5,3
M16
21
3,17
1,85

NC
NC
A5-50-65
65
120,5
79
137
95
75
46,1
8
4400
112
5,6
M16
21
4,1
2,13

D
NC
A5-50-70
70
135,5
85
153,9
109
85
50,8
10
5600
130
6,4
M20
39
7,12
3,04

NC
NC
A5-50-80
80
145,5
97
162,6
119
95
56,3
10
8700
180
7,5
M20
39
10,35
3,75

NC
NC
A5-50-90
90
155,5
109
171,7
129
105
61,8
10
12000
220
8,6
2xM20
39
15,2
4,8

NC
NC
A5-50-100
100
166
121
181
139
115
67,3
10
17000
280
9,7
2xM20
39
21,9
5,9
