Régleur de débit orientable échappement BSP cylindrique - PARKER LEGRIS 7040

LEGRIS 7040 RÉGLEUR DE DÉBIT ORIENTABLE ÉCHAPPEMENT BSP CYLINDRIQUE

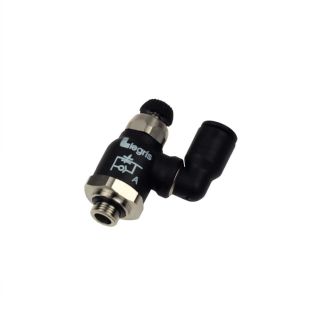

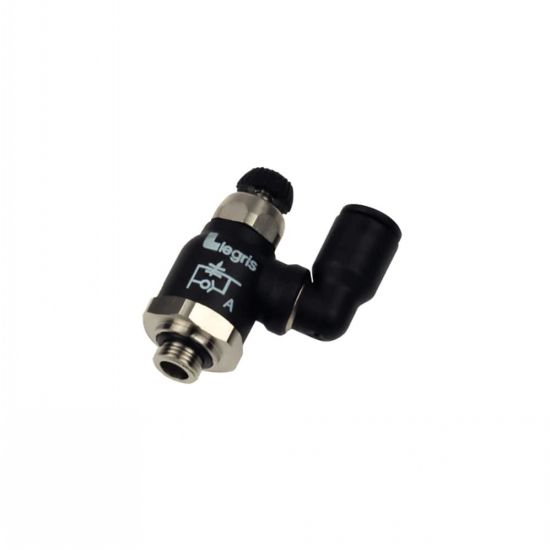

Photos

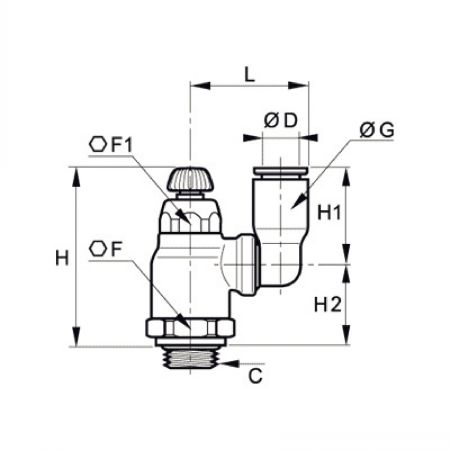

Dessins techniques

Informations

Régleur de débit orientable échappement BSP cylindrique - modèle PARKER LEGRIS 7040

MATIERE
- Corps : Polymère technique.
- Embase : Laiton nickelé.
- Joint : NBR.
- Rondelle : acier inox .
- Vis : Laiton nickelé.
- Contre- écrou : Laiton nickelé.
UTILISATION
- Pression maxi : 10 bars.
- Température d'utilisation : 0°C à +70°C

Documents

Quantité

CAD
+

D
NC
7040 06 10
6
G1/8"
16
10
10,5
38
44
16
18
23,5

NC
NC
7040 06 13
6
G1/4"
16
10
10,5
36,5
42,5
16
16,5
23,5

D
NC
7040 08 10
8
G1/8"
19
14
13,5
41,5
48
23
19
28

NC
NC
7040 08 13
8
G1/4"
19
14
13,5
41,5
48
23
19,5
28

NC
NC
7040 08 17
8
G3/8"
19
14
13,5
41,5
48
23
17,5
28

NC
NC
7040 10 13
10
G1/4"
23
17
16
45,5
53,5
26,5
21
35

NC
NC
7040 10 17
10
G3/8"
23
17
16
45,5
54
26,5
21,5
35

NC
NC
7040 12 17
12
G3/8"
23
17
19
45,5
54
30,5
21,5
38

NC
NC
7040 12 21
12
G1/2"
24
17
19
45,5
54
30,5
21
38
