Piquage droit mm mâle NPT - PARKER LEGRIS 38C5

LEGRIS 3805 PIQUAGE DROIT MM MÂLE NPT

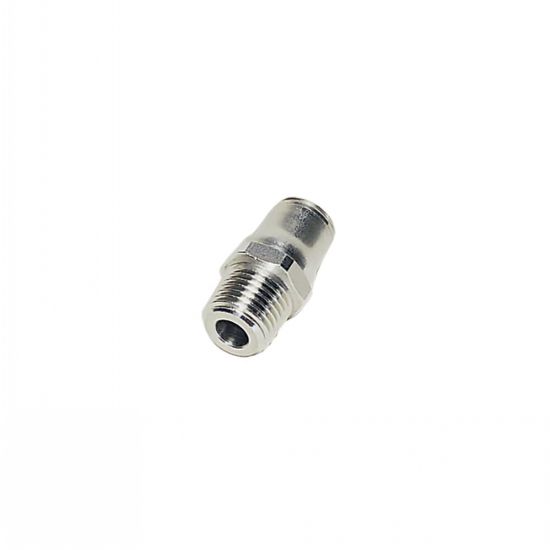

Photos

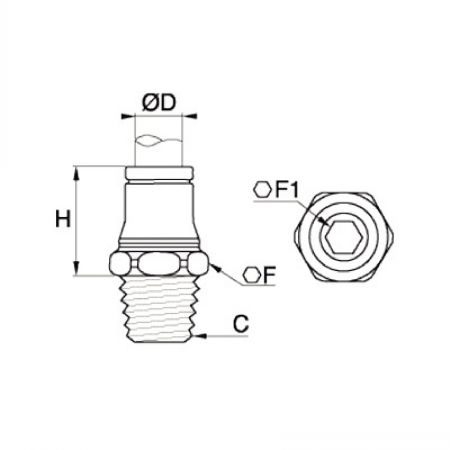

Dessins techniques

Informations

Piquage droit mm mâle NPT - modèle PARKER LEGRIS 38C5

MATIERE
- Corps : acier inox 316L.
- Joint : FKM.
- Pince : acier inox 303.
- Rondelle- joint : acier inox 316L.
UTILISATION
- Pression maxi : 30 bars.
- Température d'utilisation : - 20°C à +120°C

Documents

Quantité

CAD
+

NC
NC
3805 04 11
4
NPT1/8"
11
3
14,5

NC
NC
3805 06 11
6
NPT1/8"
13
4
18

NC
NC
3805 06 14
6
NPT1/4"
14
4
16,5

NC
NC
3805 08 11
8
NPT1/8"
15
5
19

D
NC
3805 08 14
8
NPT1/4"
15
6
18

NC
NC
3805 10 14
10
NPT1/4"
19
6
24

NC
NC
3805 10 18
10
NPT3/8"
19
7
22,5

NC
NC
3805 12 14
12
NPT1/4"
22
7
25

NC
NC
3805 12 18
12
NPT3/8"
22
8
24

NC
NC
3805 12 22
12
NPT1/2"
22
10
23
