Moyeu de serrage TMK A, 5 - 45 mm - A5-TMK

A5-TMKA - A5-TMKB MOYEU DE SERRAGE TMK

Photos

Nouveau

Dessins techniques

Informations

Moyeu de serrage TMK - modèles A5-TMKA et A5-TMKB

Matières

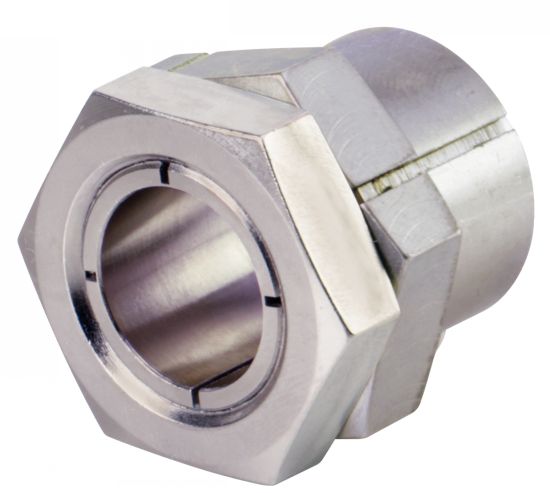

- A5-TMKA : acier.

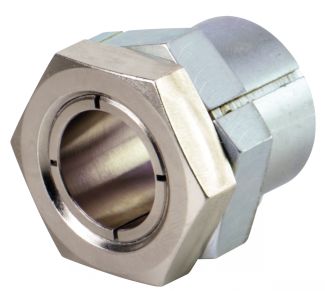

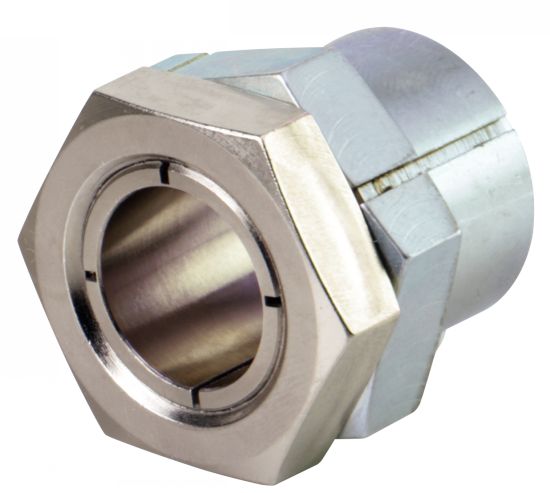

- A5-TMKB : acier, avec protection anticorrosion (douille intérieure et écrou nickelés, douille extérieure galvanisée).

Caractéristiques
- Tolérance : arbre h8, moyeu H8.
- Profondeur de rugosite arbre / moyeu maxi 12,5 µm.
- L'écrou repose sur la douille intérieure et est logé avec une collerette de manière à pivoter dans la douille extérieure.

Utilisation
- Pour fixer un moyeu, exemple : roue d'entraînement, rotor ou similaire sur un arbre.
- Pour couples moyens.
- Autocentrant.
- Avec un second hexagone de serrage pour maintien lors du montage.
- Mouvement axial lors du montage..

Montage
- Le moyeu expansible doit être mis en place sans graisse. Seules les surfaces de contact entre les hexagones de serrage intérieur et extérieur doivent être huilées.
- Le moyeu expansible ne peut pas entrer en contact avec les composants fixes. Maintenir l'hexagone de serrage arrière avec une clé plate mince et visser l'hexagone de serrage avant au couple de serrage TA dans le sens des aiguilles d' une
montre, à l'aide d'une clé dynamométrique.

Démontage
- Maintenir l'hexagone de serrage arrière avec une clé plate mince et tourner l'hexagone de serrage avant dans le sens inverse des aiguilles d' une montre, jusqu'à ce que la douille intérieure ressorte de quelques millimètres.

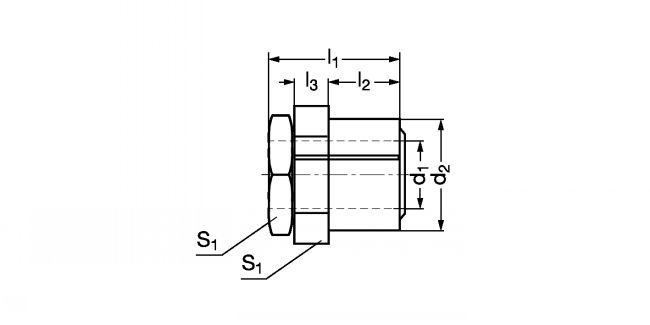

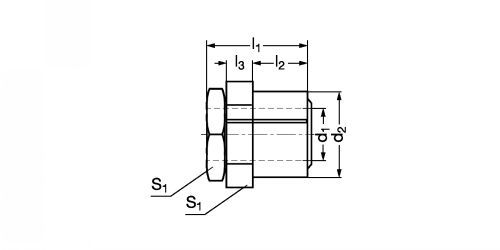

Les dimensions sont celles du manchon avant le montage.

T = Couple transmissible si Fax=0.
Fax = Force axiale transmissible si T=0.
PW = Pression superficielle árbre.
PN = Pression superficielle moyeu.
TA = Couple de serrage.

Quantité

CAD
+

NC
NC
A5-TMKA-5
Acier brut
5
12
19
9
6
10
4,0
264
119
14
10
16

NC
NC
A5-TMKA-6
Acier brut
6
12
19
9
6
12
4,0
220
119
14
10
15

NC
NC
A5-TMKA-7
Acier brut
7
14
22
11
6
20
5,8
205
121
16
17
23

NC
NC
A5-TMKA-8
Acier brut
8
14
22
11
6
23
5,8
180
121
16
17
21

NC
NC
A5-TMKA-9
Acier brut
9
18
24
12
7
43
9,7
246
144
22
35
47

NC
NC
A5-TMKA-10
Acier brut
10
18
24
12
7
48
9,7
221
144
22
35
44

NC
NC
A5-TMKA-11
Acier brut
11
20
24
12
7
59
10,8
225
145
22
44
47

NC
NC
A5-TMKA-12
Acier brut
12
20
24
12
7
65
10,8
207
145
22
44
44

NC
NC
A5-TMKA-14
Acier brut
14
24
28
15
7
93
13,3
179
118
27
65
76

NC
NC
A5-TMKA-15
Acier brut
15
24
28
15
7
99
13,3
167
118
27
65
72

NC
NC
A5-TMKA-16
Acier brut
16
24
28
15
7
106
13,3
156
118
27
65
67

NC
NC
A5-TMKA-17
Acier brut
17
26
34
16
10
163
19,2
187
148
32
110
122

NC
NC
A5-TMKA-18
Acier brut
18
30
36
17
10
223
24,8
224
155
36
160
176

NC
NC
A5-TMKA-19
Acier brut
19
30
36
17
10
235
24,8
213
155
36
160
169

NC
NC
A5-TMKA-20
Acier brut
20
30
36
17
10
248
24,8
202
155
36
160
162

NC
NC
A5-TMKA-22
Acier brut
22
38
41
20
10
349
31,7
197
134
46
250
338

NC
NC
A5-TMKA-24
Acier brut
24
38
41
20
10
381
31,7
181
134
46
250
315

NC
NC
A5-TMKA-25
Acier brut
25
38
41
20
10
397
31,7
174
134
46
250
304

NC
NC
A5-TMKA-28
Acier brut
28
42
44
23
10
565
40,3
174
134
50
355
370

NC
NC
A5-TMKA-30
Acier brut
30
42
44
23
10
605
40,3
163
134
50
355
345

NC
NC
A5-TMKA-32
Acier brut
32
50
51
28
10
764
47,7
166
112
55
490
552

NC
NC
A5-TMKA-35
Acier brut
35
50
51
28
10
836
47,7
152
112
55
490
495

NC
NC
A5-TMKA-38
Acier brut
38
58
58
32
11
1140
60,2
155
116
65
700
851

NC
NC
A5-TMKA-40
Acier brut
40
58
58
32
11
1200
60,2
147
116
65
700
801

NC
NC
A5-TMKA-42
Acier brut
42
60
63
37
11
1250
59,6
120
94
65
740
841

NC
NC
A5-TMKA-45
Acier brut
45
60
63
37
11
1340
59,6
112
94
65
740
741

NC
NC
A5-TMKB-5
Acier anticorrosion
5
12
19
9
6
10
4,0
264
119
14
10
16

NC
NC
A5-TMKB-6
Acier anticorrosion
6
12
19
9
6
12
4,0
220
119
14
10
15

NC
NC
A5-TMKB-7
Acier anticorrosion
7
14
22
11
6
20
5,8
205
121
16
17
23

NC
NC
A5-TMKB-8
Acier anticorrosion
8
14
22
11
6
23
5,8
180
121
16
17
21

NC
NC
A5-TMKB-9
Acier anticorrosion
9
18
24
12
7
43
9,7
246
144
22
35
47

NC
NC
A5-TMKB-10
Acier anticorrosion
10
18
24
12
7
48
9,7
221
144
22
35
44

NC
NC
A5-TMKB-11
Acier anticorrosion
11
20
24
12
7
59
10,8
225
145
22
44
47

NC
NC
A5-TMKB-12
Acier anticorrosion
12
20
24
12
7
65
10,8
207
145
22
44
44

NC
NC
A5-TMKB-14
Acier anticorrosion
14
24
28
15
7
93
13,3
179
118
27
65
76

NC
NC
A5-TMKB-15
Acier anticorrosion
15
24
28
15
7
99
13,3
167
118
27
65
72

NC
NC
A5-TMKB-16
Acier anticorrosion
16
24
28
15
7
106
13,3
156
118
27
65
67

NC
NC
A5-TMKB-17
Acier anticorrosion
17
26
34
16
10
163
19,2
187
148
32
110
122

NC
NC
A5-TMKB-18
Acier anticorrosion
18
30
36
17
10
223
24,8
224
155
36
160
176

NC
NC
A5-TMKB-19
Acier anticorrosion
19
30
36
17
10
235
24,8
213
155
36
160
169

NC
NC
A5-TMKB-20
Acier anticorrosion
20
30
36
17
10
248
24,8
202
155
36
160
162

NC
NC
A5-TMKB-22
Acier anticorrosion
22
38
41
20
10
349
31,7
197
134
46
250
338

NC
NC
A5-TMKB-24
Acier anticorrosion
24
38
41
20
10
381
31,7
181
134
46
250
315

NC
NC
A5-TMKB-25
Acier anticorrosion
25
38
41
20
10
397
31,7
174
134
46
250
304

NC
NC
A5-TMKB-28
Acier anticorrosion
28
42
44
23
10
565
40,3
174
134
50
355
370

NC
NC
A5-TMKB-30
Acier anticorrosion
30
42
44
23
10
605
40,3
163
134
50
355
345

NC
NC
A5-TMKB-32
Acier anticorrosion
32
50
51
28
10
764
47,7
166
112
55
490
552

NC
NC
A5-TMKB-35
Acier anticorrosion
35
50
51
28
10
836
47,7
152
112
55
490
495

NC
NC
A5-TMKB-38
Acier anticorrosion
38
58
58
32
11
1140
60,2
155
116
65
700
851

NC
NC
A5-TMKB-40
Acier anticorrosion
40
58
58
32
11
1200
60,2
147
116
65
700
801

NC
NC
A5-TMKB-42
Acier anticorrosion
42
60
63
37
11
1250
59,6
120
94
65
740
841

NC
NC
A5-TMKB-45
Acier anticorrosion
45
60
63
37
11
1340
59,6
112
94
65
740
741
