Joint torique - EPDM

E2-EPDM JOINT TORIQUE EPDM

Photos

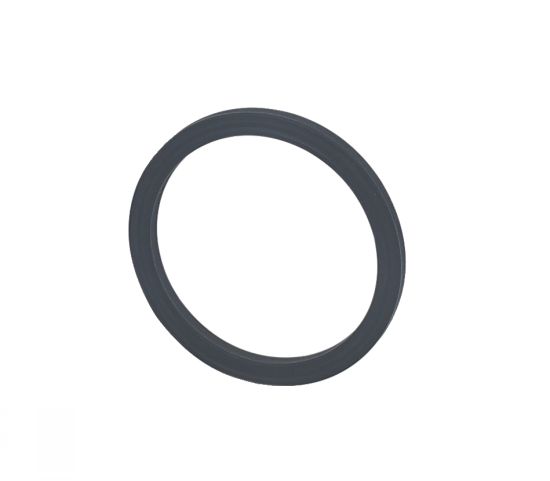

Joint torique - EPDM

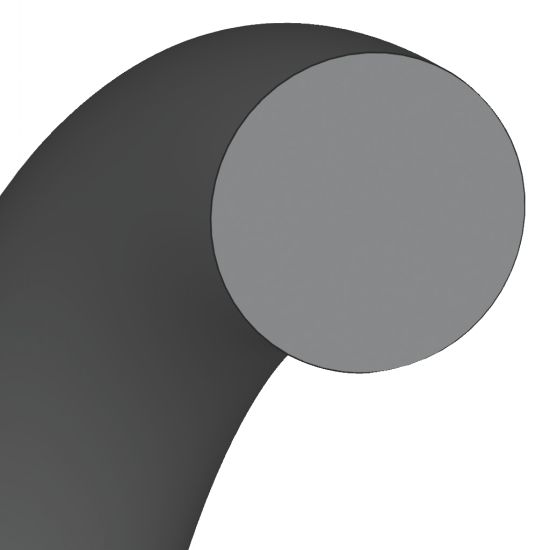

Joint torique

Dessins techniques

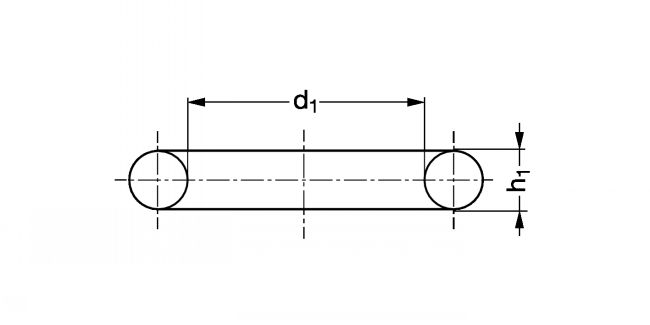

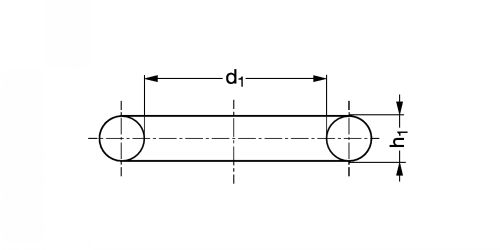

Joint torique - EPDM - Plan
FREUDENBERG
EXEMPLE DE COMMANDE : Référence
2X1/EP

Informations

Joint torique EPDM - modèle E2-EPDM

Matières
- EPDM EP703901.
- Noir.
- 70 Shore A.

Caractéristiques
- Plage de températures : de -50°C à +150°C.
- Bonne résistance à la vapeu surchauffée et à la vapeur d'eau.
- Bonne résistance à l'ozone, détargents, solutions de soude caustique et d'hydroxyde de potassium, huiles et graisses de silicone.

Documents

Schéma 0

Quantité

CAD
+

NC
NC
1,24X2,62/EP
1,24
2,62

NC
NC
1,78X1,02/EP
1,78
1,02

NC
NC
1,78X1,78/EP
1,78
1,78

NC
NC
2X1/EP
2
1

NC
NC
2,06X2,62/EP
2,06
2,62

NC
NC
2,57X1,78/EP
2,57
1,78

NC
NC
2,84X2,62/EP
2,84
2,62

NC
NC
3,63X2,62/EP
3,63
2,62

D
NC
4X1/EP
4
1

NC
NC
4,34X3,53/EP
4,34
3,53

NC
NC
4,42X2,62/EP
4,42
2,62

NC
NC
4,47X1,78/EP
4,47
1,78

NC
NC
5X1/EP
5
1

NC
NC
5X2/EP
5
2

NC
NC
5,23X2,62/EP
5,23
2,62

NC
NC
5,28X1,78/EP
5,28
1,78

NC
NC
5,94X3,53/EP
5,94
3,53

NC
NC
6X1/EP
6
1

NC
NC
6X2/EP
6
2

NC
NC
6X3/EP
6
3

NC
NC
6,02X2,62/EP
6,02
2,62

NC
NC
6,75X1,78/EP
6,75
1,78

NC
NC
7X1/EP
7
1

NC
NC
7X2/EP
7
2

NC
NC
7,52X3,53/EP
7,52
3,53

NC
NC
7,59X2,62/EP
7,59
2,62

NC
NC
8X1,25/EP
8
1,25

D
NC
8X2/EP
8
2

NC
NC
8,73X1,78/EP
8,73
1,78

NC
NC
9X1/EP
9
1

D
NC
9X2/EP
9
2

NC
NC
9,12X3,53/EP
9,12
3,53

NC
NC
9,19X2,62/EP
9,19
2,62

NC
NC
9,92X2,62/EP
9,92
2,62

NC
NC
10X1/EP
10
1

NC
NC
10,5X2,7/EP
10,5
2,7

NC
NC
10,69X3,53/EP
10,69
3,53

NC
NC
10,82X1,78/EP
10,82
1,78

D
NC
12X2/EP
12
2

D
NC
12X3/EP
12
3

NC
NC
12,29X3,53/EP
12,29
3,53

NC
NC
12,37X2,62/EP
12,37
2,62

NC
NC
13X2/EP
13
2

NC
NC
13,11X2,62/EP
13,11
2,62

NC
NC
13,87X3,53/EP
13,87
3,53

D
NC
13,94X2,62/EP
13,94
2,62

NC
NC
14X1,78/EP
14
1,78

NC
NC
14X2/EP
14
2

NC
NC
14X3/EP
14
3

NC
NC
15X1/EP
15
1

NC
NC
15X2/EP
15
2

NC
NC
15X3/EP
15
3

NC
NC
16X1/EP
16
1

NC
NC
16X2/EP
16
2

NC
NC
17X2/EP
17
2

NC
NC
17,04X3,53/EP
17,04
3,53

NC
NC
17,12X2,62/EP
17,12
2,62

NC
NC
17,17X1,78/EP
17,17
1,78

NC
NC
18X2/EP
18
2

NC
NC
18X3/EP
18
3

NC
NC
18X4/EP
18
4

NC
NC
18,64X3,53/EP
18,64
3,53

NC
NC
18,65X3,53/EP
18,65
3,53

NC
NC
18,72X2,62/EP
18,72
2,62

NC
NC
19X2/EP
19
2

NC
NC
19X3/EP
19
3

NC
NC
20X1/EP
20
1

NC
NC
20X2/EP
20
2

NC
NC
20X3/EP
20
3

NC
NC
20,29X2,62/EP
20,29
2,62

NC
NC
20,35X1,78/EP
20,35
1,78

D
NC
20,63X2,62/EP
20,63
2,62

NC
NC
21X2/EP
21
2

NC
NC
21,82X3,53/EP
21,82
3,53

NC
NC
21,89X2,62/EP
21,89
2,62

NC
NC
22X2/EP
22
2

NC
NC
22X3/EP
22
3

NC
NC
23X1/EP
23
1

D
NC
23X2/EP
23
2

NC
NC
23,16X5,33/EP
23,16
5,33

D
NC
24X2/EP
24
2

NC
NC
24X3/EP
24
3

NC
NC
24,77X5,33/EP
24,77
5,33

NC
NC
24,99X3,53/EP
24,99
3,53

NC
NC
25X5/EP
25
5

NC
NC
25,07X2,62/EP
25,07
2,62

NC
NC
25,12X1,78/EP
25,12
1,78

NC
NC
26,34X5,33/EP
26,34
5,33

NC
NC
26,57X3,53/EP
26,57
3,53

NC
NC
26,64X2,62/EP
26,64
2,62

NC
NC
27,94X5,33/EP
27,94
5,33

NC
NC
28X2/EP
28
2

NC
NC
28,17X3,53/EP
28,17
3,53

D
NC
28,24X2,62/EP
28,24
2,62

NC
NC
29X3/EP
29
3

NC
NC
29,51X5,33/EP
29,51
5,33

NC
NC
29,74X3,53/EP
29,74
3,53

NC
NC
29,82X2,62/EP
29,82
2,62

D
NC
29,87X1,78/EP
29,87
1,78

D
NC
30X2/EP
30
2

D
NC
30X3/EP
30
3

NC
NC
30X4/EP
30
4

NC
NC
31,34X3,53/EP
31,34
3,53

NC
NC
31,42X2,62/EP
31,42
2,62

NC
NC
32X1/EP
32
1

NC
NC
32X2/EP
32
2

NC
NC
32X3/EP
32
3

NC
NC
32X5/EP
32
5

NC
NC
32,99X2,62/EP
32,99
2,62

NC
NC
33X3/EP
33
3

NC
NC
33,05X1,78/EP
33,05
1,78

NC
NC
34X3/EP
34
3

NC
NC
34,29X5,33/EP
34,29
5,33

D
NC
34,59X2,62/EP
34,59
2,62

NC
NC
34,65X1,78/EP
34,65
1,78

NC
NC
35X2/EP
35
2

NC
NC
35X3/EP
35
3

NC
NC
36X2/EP
36
2

NC
NC
36X3/EP
36
3

NC
NC
36,09X3,53/EP
36,09
3,53

NC
NC
36,17X2,62/EP
36,17
2,62

D
NC
37,47X5,33/EP
37,47
5,33

NC
NC
37,69X3,53/EP
37,69
3,53

NC
NC
37,77X2,62/EP
37,77
2,62

NC
NC
38X5/EP
38
5

NC
NC
39X3/EP
39
3

NC
NC
39,34X2,62/EP
39,34
2,62

NC
NC
39,69X3,53/EP
39,69
3,53

NC
NC
40X2/EP
40
2

NC
NC
40,94X2,62/EP
40,94
2,62

NC
NC
41X1,78/EP
41
1,78

NC
NC
41X3/EP
41
3

NC
NC
42,52X2,62/EP
42,52
2,62

NC
NC
42,86X3,53/EP
42,86
3,53

NC
NC
43X3/EP
43
3

NC
NC
43,82X5,33/EP
43,82
5,33

NC
NC
44X3/EP
44
3

NC
NC
44,04X3,53/EP
44,04
3,53

D
NC
44,05X3,53/EP
44,05
3,53

NC
NC
44,12X2,62/EP
44,12
2,62

NC
NC
44,17X1,78/EP
44,17
1,78

D
NC
45X3/EP
45
3

NC
NC
45X4/EP
45
4

NC
NC
45,69X2,62/EP
45,69
2,62

NC
NC
46X2/EP
46
2

NC
NC
46X3/EP
46
3

NC
NC
46,04X3,53/EP
46,04
3,53

NC
NC
46,99X5,33/EP
46,99
5,33

NC
NC
47,29X2,62/EP
47,29
2,62

NC
NC
47,35X1,78/EP
47,35
1,78

NC
NC
48X2/EP
48
2

NC
NC
48X3/EP
48
3

NC
NC
49X3/EP
49
3

NC
NC
50X2/EP
50
2

NC
NC
50X3/EP
50
3

NC
NC
50,17X5,33/EP
50,17
5,33

NC
NC
50,47X2,62/EP
50,47
2,62

NC
NC
50,52X1,78/EP
50,52
1,78

NC
NC
52,07X2,62/EP
52,07
2,62

NC
NC
52,39X3,53/EP
52,39
3,53

NC
NC
53X4/EP
53
4

NC
NC
53,64X2,62/EP
53,64
2,62

D
NC
55X3/EP
55
3

NC
NC
55X4/EP
55
4

NC
NC
55,25X2,62/EP
55,25
2,62

NC
NC
55,56X3,53/EP
55,56
3,53

NC
NC
56,74X3,53/EP
56,74
3,53

NC
NC
56,75X3,53/EP
56,75
3,53

NC
NC
56,82X2,62/EP
56,82
2,62

NC
NC
56,87X1,78/EP
56,87
1,78

NC
NC
58X3/EP
58
3

NC
NC
58,42X2,62/EP
58,42
2,62

NC
NC
58,74X3,53/EP
58,74
3,53

D
NC
59,69X5,33/EP
59,69
5,33

NC
NC
59,92X3,53/EP
59,92
3,53

NC
NC
59,99X2,62/EP
59,99
2,62

NC
NC
60X4/EP
60
4

NC
NC
60X5/EP
60
5

NC
NC
60,05X1,78/EP
60,05
1,78

NC
NC
62X3/EP
62
3

NC
NC
62,87X5,33/EP
62,87
5,33

NC
NC
63X2/EP
63
2

NC
NC
63,17X2,62/EP
63,17
2,62

NC
NC
63,22X1,78/EP
63,22
1,78

NC
NC
64,77X2,62/EP
64,77
2,62

NC
NC
65,09X3,53/EP
65,09
3,53

NC
NC
66,04X5,33/EP
66,04
5,33

NC
NC
66,34X2,62/EP
66,34
2,62

NC
NC
67,95X2,62/EP
67,95
2,62

NC
NC
68X2/EP
68
2

NC
NC
68X3/EP
68
3

D
NC
69,22X5,33/EP
69,22
5,33

D
NC
69,44X3,53/EP
69,44
3,53

NC
NC
69,57X1,78/EP
69,57
1,78

NC
NC
70X3/EP
70
3

NC
NC
70X5/EP
70
5

NC
NC
72X3/EP
72
3

NC
NC
72X4/EP
72
4

NC
NC
72,39X5,33/EP
72,39
5,33

NC
NC
72,62X3,53/EP
72,62
3,53

NC
NC
72,75X1,78/EP
72,75
1,78

NC
NC
75X4/EP
75
4

NC
NC
75X5/EP
75
5

NC
NC
75,57X5,33/EP
75,57
5,33

NC
NC
75,87X2,62/EP
75,87
2,62

NC
NC
75,92X1,78/EP
75,92
1,78

NC
NC
76X4/EP
76
4

D
NC
78X3/EP
78
3

NC
NC
78X4/EP
78
4

D
NC
78,74X5,33/EP
78,74
5,33

NC
NC
78,97X3,53/EP
78,97
3,53

NC
NC
80X2/EP
80
2

NC
NC
80X3/EP
80
3

NC
NC
81,92X5,33/EP
81,92
5,33

NC
NC
82,14X3,53/EP
82,14
3,53

NC
NC
82,22X2,62/EP
82,22
2,62

NC
NC
82,27X1,78/EP
82,27
1,78

NC
NC
85X3/EP
85
3

NC
NC
85X4/EP
85
4

NC
NC
85,09X5,33/EP
85,09
5,33

NC
NC
88X3/EP
88
3

NC
NC
88,27X5,33/EP
88,27
5,33

NC
NC
88,49X3,53/EP
88,49
3,53

NC
NC
88,57X2,62/EP
88,57
2,62

NC
NC
88,62X1,78/EP
88,62
1,78

NC
NC
90X3/EP
90
3

NC
NC
90X5/EP
90
5

NC
NC
91,44X5,33/EP
91,44
5,33

NC
NC
91,67X3,53/EP
91,67
3,53

NC
NC
92X3/EP
92
3

NC
NC
92X4/EP
92
4

NC
NC
94X3/EP
94
3

NC
NC
94,62X5,33/EP
94,62
5,33

D
NC
94,84X3,53/EP
94,84
3,53

NC
NC
94,92X2,62/EP
94,92
2,62

NC
NC
94,97X1,78/EP
94,97
1,78

NC
NC
97,79X5,33/EP
97,79
5,33

NC
NC
98X3/EP
98
3

NC
NC
98,02X3,53/EP
98,02
3,53

NC
NC
100X2/EP
100
2

NC
NC
100X3/EP
100
3

NC
NC
100X4/EP
100
4

NC
NC
101,19X3,53/EP
101,19
3,53

NC
NC
101,27X2,62/EP
101,27
2,62

NC
NC
101,32X1,78/EP
101,32
1,78

NC
NC
104,14X5,33/EP
104,14
5,33

NC
NC
104,37X3,53/EP
104,37
3,53

NC
NC
105X3/EP
105
3

NC
NC
107,32X5,33/EP
107,32
5,33

NC
NC
107,62X2,62/EP
107,62
2,62

NC
NC
107,67X1,78/EP
107,67
1,78

NC
NC
108X4/EP
108
4

NC
NC
110,49X5,33/EP
110,49
5,33

NC
NC
113,67X5,33/EP
113,67
5,33

NC
NC
113,97X2,62/EP
113,97
2,62

NC
NC
114,02X1,78/EP
114,02
1,78

NC
NC
115X3/EP
115
3

NC
NC
115X5/EP
115
5

NC
NC
116,84X5,33/EP
116,84
5,33

NC
NC
117,07X3,53/EP
117,07
3,53

NC
NC
118X3/EP
118
3

NC
NC
120X4/EP
120
4

NC
NC
120,02X5,33/EP
120,02
5,33

NC
NC
120,02X6,99/EP
120,02
6,99

NC
NC
120,24X3,53/EP
120,24
3,53

NC
NC
120,32X2,62/EP
120,32
2,62

NC
NC
120,37X1,78/EP
120,37
1,78

NC
NC
123,19X5,33/EP
123,19
5,33

NC
NC
123,42X3,53/EP
123,42
3,53

NC
NC
125X4/EP
125
4

NC
NC
125X5/EP
125
5

NC
NC
126,37X5,33/EP
126,37
5,33

NC
NC
126,37X6,99/EP
126,37
6,99

NC
NC
126,67X2,62/EP
126,67
2,62

NC
NC
126,72X1,78/EP
126,72
1,78

NC
NC
129,54X5,33/EP
129,54
5,33

NC
NC
132,72X5,33/EP
132,72
5,33

NC
NC
132,72X6,99/EP
132,72
6,99

D
NC
132,94X3,53/EP
132,94
3,53

NC
NC
133,02X2,62/EP
133,02
2,62

NC
NC
133,07X1,78/EP
133,07
1,78

NC
NC
135,89X5,33/EP
135,89
5,33

NC
NC
136,12X3,53/EP
136,12
3,53

NC
NC
139,07X5,33/EP
139,07
5,33

NC
NC
139,07X6,99/EP
139,07
6,99

NC
NC
139,29X3,53/EP
139,29
3,53

NC
NC
139,37X2,62/EP
139,37
2,62

NC
NC
140X5/EP
140
5

NC
NC
142X4/EP
142
4

NC
NC
142,24X5,33/EP
142,24
5,33

NC
NC
142,24X6,99/EP
142,24
6,99

NC
NC
145,42X5,33/EP
145,42
5,33

NC
NC
145,42X6,99/EP
145,42
6,99

NC
NC
148,59X5,33/EP
148,59
5,33

NC
NC
148,59X6,99/EP
148,59
6,99

NC
NC
148,82X3,53/EP
148,82
3,53

NC
NC
151,77X5,33/EP
151,77
5,33

NC
NC
151,99X3,53/EP
151,99
3,53

NC
NC
152,07X2,62/EP
152,07
2,62

NC
NC
158,12X5,33/EP
158,12
5,33

NC
NC
158,12X6,99/EP
158,12
6,99

NC
NC
158,34X3,53/EP
158,34
3,53

NC
NC
164,47X5,33/EP
164,47
5,33

NC
NC
164,47X6,99/EP
164,47
6,99

NC
NC
164,69X3,53/EP
164,69
3,53

NC
NC
164,77X2,62/EP
164,77
2,62

NC
NC
170X5/EP
170
5

NC
NC
170,81X6,99/EP
170,81
6,99

NC
NC
170,82X5,33/EP
170,82
5,33

NC
NC
171,12X2,62/EP
171,12
2,62

NC
NC
174X3/EP
174
3

NC
NC
175X5/EP
175
5

NC
NC
177,17X6,99/EP
177,17
6,99

NC
NC
177,39X3,53/EP
177,39
3,53

NC
NC
177,47X2,62/EP
177,47
2,62

NC
NC
180X5/EP
180
5

NC
NC
183,51X6,99/EP
183,51
6,99

NC
NC
183,52X5,33/EP
183,52
5,33

NC
NC
183,52X6,99/EP
183,52
6,99

NC
NC
183,74X3,53/EP
183,74
3,53

NC
NC
183,82X2,62/EP
183,82
2,62

NC
NC
189,87X5,33/EP
189,87
5,33

D
NC
189,87X6,99/EP
189,87
6,99

NC
NC
190X5/EP
190
5

D
NC
190,09X3,53/EP
190,09
3,53

NC
NC
190,17X2,62/EP
190,17
2,62

NC
NC
196,22X5,33/EP
196,22
5,33

NC
NC
196,22X6,99/EP
196,22
6,99

NC
NC
196,44X3,53/EP
196,44
3,53

NC
NC
196,52X2,62/EP
196,52
2,62

NC
NC
200X4/EP
200
4

NC
NC
202,57X5,33/EP
202,57
5,33

NC
NC
202,57X6,99/EP
202,57
6,99

NC
NC
202,79X3,53/EP
202,79
3,53

NC
NC
202,87X2,62/EP
202,87
2,62

NC
NC
208,92X5,33/EP
208,92
5,33

NC
NC
209,14X3,53/EP
209,14
3,53

NC
NC
215,27X5,33/EP
215,27
5,33

NC
NC
215,49X3,53/EP
215,49
3,53

NC
NC
220X5/EP
220
5

NC
NC
221,84X3,53/EP
221,84
3,53

NC
NC
221,92X2,62/EP
221,92
2,62

NC
NC
227,97X5,33/EP
227,97
5,33

NC
NC
228,19X3,53/EP
228,19
3,53

NC
NC
234,32X5,33/EP
234,32
5,33

NC
NC
234,54X3,53/EP
234,54
3,53

NC
NC
240,67X5,33/EP
240,67
5,33

NC
NC
240,67X6,99/EP
240,67
6,99

NC
NC
240,89X3,53/EP
240,89
3,53

NC
NC
247,02X5,33/EP
247,02
5,33

NC
NC
247,24X3,53/EP
247,24
3,53

NC
NC
247,32X2,62/EP
247,32
2,62

NC
NC
253,37X5,33/EP
253,37
5,33

NC
NC
253,37X6,99/EP
253,37
6,99

NC
NC
253,59X3,53/EP
253,59
3,53

NC
NC
266,07X5,33/EP
266,07
5,33

NC
NC
266,07X6,99/EP
266,07
6,99

NC
NC
266,29X3,53/EP
266,29
3,53

NC
NC
278,77X5,33/EP
278,77
5,33

NC
NC
278,77X6,99/EP
278,77
6,99

NC
NC
278,99X3,53/EP
278,99
3,53

NC
NC
291,47X5,33/EP
291,47
5,33

NC
NC
291,69X3,53/EP
291,69
3,53

NC
NC
304,17X5,33/EP
304,17
5,33

NC
NC
304,17X6,99/EP
304,17
6,99

NC
NC
304,39X3,53/EP
304,39
3,53

NC
NC
329,57X5,33/EP
329,57
5,33

NC
NC
329,57X6,99/EP
329,57
6,99

NC
NC
354,97X5,33/EP
354,97
5,33

NC
NC
355,19X3,53/EP
355,19
3,53

NC
NC
380,37X5,33/EP
380,37
5,33

NC
NC
380,59X3,53/EP
380,59
3,53

NC
NC
405,26X3,53/EP
405,26
3,53

NC
NC
405,26X5,33/EP
405,26
5,33

NC
NC
430,66X5,33/EP
430,66
5,33

NC
NC
430,66X6,99/EP
430,66
6,99

NC
NC
443,36X6,99/EP
443,36
6,99

NC
NC
506,86X5,33/EP
506,86
5,33

Retour en haut
