Équerre compacte piquage mâle NPT - PARKER LEGRIS 38C9

LEGRIS 3889 ÉQUERRE COMPACTE PIQUAGE MÂLE NPT

Photos

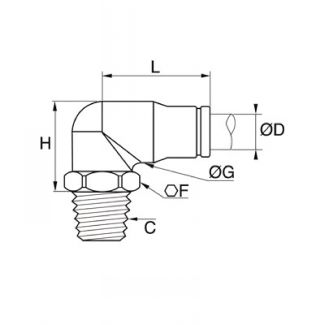

Dessins techniques

Informations

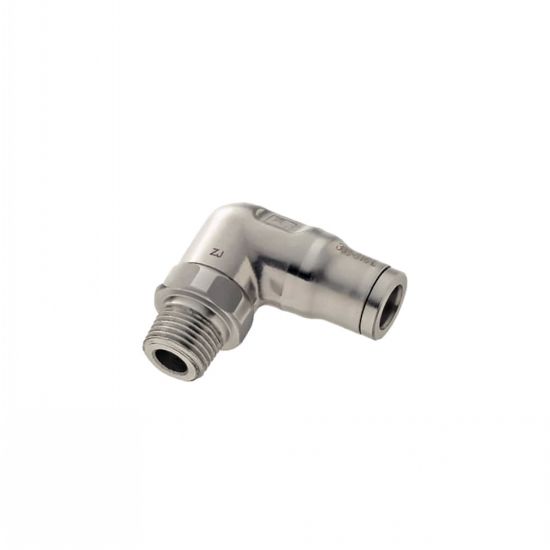

Équerre compacte piquage mâle NPT - modèle PARKER LEGRIS 38C9

MATIERE
- Corps : acier inox 316L.
- Embase : acier inox 316L.
- Joint : FKM.
- Pince : acier inox 303.
- Rondelle- joint : acier inox 316L.
UTILISATION
- Pression maxi : 20 bars.
- Température d'utilisation : - 20°C à +120°C

Documents

Quantité

CAD
+

NC
NC
3889 06 11
6
NPT1/8"
13
12,5
20
22,5

NC
NC
3889 06 14
6
NPT1/4"
14
12,5
20
22,5

NC
NC
3889 08 11
8
NPT1/8"
13
15
25
24

NC
NC
3889 08 14
8
NPT1/4"
14
15
24
24

NC
NC
3889 10 14
10
NPT1/4"
17
17,5
27,5
27,5

NC
NC
3889 12 14
12
NPT1/4"
22
20
31,5
32,5

NC
NC
3889 12 22
12
NPT1/2"
22
20
27,5
32,5
