Corps femelle traversée de cloison BSP cylindrique, profil ISO B - PARKER LEGRIS 416U

LEGRIS 9416U CORPS FEMELLE TRAVERSÉE DE CLOISON BSP CYLINDRIQUE, PROFIL ISO B

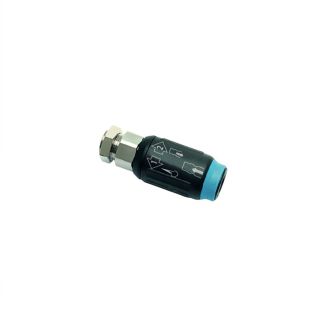

Photos

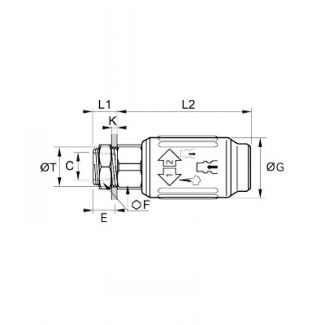

Dessins techniques

Informations

Corps femelle traversée de cloison BSP cylindrique, profil ISO B - modèle PARKER LEGRIS 416U

MATIERE
- Corps : Polymère technique.
- Ecrou de blocage : Laiton nickelé.
- Embase : Laiton nickelé.
- Joint : NBR.
- Bille : acier inox .
UTILISATION
- Pression maxi : 16 bars.
- Température d'utilisation : - 20°C à +60°C

Documents

Quantité

CAD
+

D
NC
9416U06 13
5,5
G1/4"
12
22
31,5
6
12,5
68,5
18,5

NC
NC
9416U08 17
8
G3/8"
12
24
36,5
7
14,5
76
22,5
